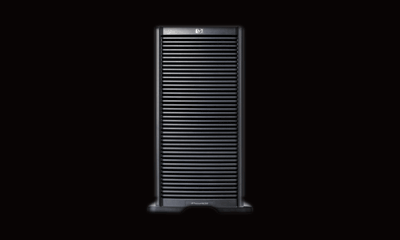

HP ML350 G6
HP ML350 G6 Full Specifications
The HP ProLiant ML350 G6 is the best price-performance, dual-processor Tower server that delivers excellence with performance,
expandability and availability. The G6 server has more memory capacity and HDD expandability than previous generations. It combines
the latest Intel Xeon 5600 processors with QPI technology, best-in-class availability features, and unsurpassed flexibility in a system
ideal for growing businesses and especially well suited to meet the needs of remote branch offices.
General Details
| Manufacturer |
HP |
| Model |
HP ProLiant ML350 Generation 6 (G6) |
| Type |
Tower Server 5U ( Rack Mountable ) |
| |
|
Processor / Chipset
| Processor Family |
Intel Xeon Processor |
| Processor Model |
Intel Xeon 5600 and 5500 series processors |
| Maximum Number of Processors |
2 |
| Processor number of Cores |
Dual Core, Quad Core, and Six Core |
| Motherboard Chipset |
Intel 5520 Chipset |
| |
|
Memory / Cache Memory
| Memory Type |
PC3-6400/8500/10600 (DDR3 800/1066) Registered or Unbuffered memory |
| Memory Slots |
18 Slots |
| Maximum Memory |
192 GB DDR3 Registered Memory
48 GB DDR3 Unbuffered Memory |
| Cache Memory |
L3 Cache Memory |
| Cache Memory Size |
4MB, 8MB, 12MB |
| |
|
Internal / External Storage
| Number of Hard Drives Supported |
2 |
| Hard Drive |
2 x 300 GB SAS/SATA HDD Supports |
| Maximum Internal Storage |
16 TB |
| External Storage |
Up to 4 D2700 Disk Enclosure |
| RAID Support |
Integrated Raid 0,1,5 and 6 |
| |
|
Optical Drive
| Optical Drive Type |
DVD ROM or DVD RW |
| |
|
Graphics Controller
| Graphic Adapter Family |
ATI RN50 |
| Model |
Integrated ATI RN50 |
| Maximum Graphic Adapter Memory |
64 MB |
| |
|
I/O & Networking
| Expansion Slots |
6 PCI Express Gen2 |
| Network Cotroller |
Integrated Dual-Gigabit Ethernet |
| |
|
Power
| Power Supply |
Redundant Power Supply |
| |
|
Environmental Parameters
| Min Operating Temperature |
10°C |
| Max Operating Temperature |
35°C |
| Huimdity Range Operating |
10 to 90% relative humidity (Rh), 28°C (82.4°F)
maximum wet bulb temperature, non-condensing |
| |
|
Operating System / Software
| Operating System Installed |
Yes |
| Supporting Operating Systems |
Microsoft Windows Server 2003 All Editions, Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server (SLES), NetWare |
| |
|
Miscellaneous
| Features |
iLO Standard, Insight Control |
| |
|
